Купольная IP камера TNV-C8034RM T 5MP AI IR Mobile Camera



TNV-A8034RM

T 5MP AI IR Mobile Camera



Основные характеристики

• Max. 5MP resolution
• 6.0 mm fixed lens
• Color: 0.03Lux(F1.65, 1/30sec), BW: 0.003Lux(F1.65, 1/30sec, 30IRE)
• Maximum 30fps@5MP (H.265/H.264)
• IR viewable length 30m (98.42ft)
• Hard-coated dome bubble,
• EIS, Shock detection, Heater, Built-in Mic
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU)
• EN50155 compliance
• IP66, IK10
• PoE: Max 7.2W, M12 connector



Fit Anywhere. Protect Everywhere.

The compact design minimizes obstructions and ensures a discreet installation in low-ceiling environments such as trains and buses.

Customized Views with Expanded Lens Options

The T series AI Mobile cameras offer 3mm and 6mm fixed lens options, giving you the flexibility to choose the ideal view for any environment.

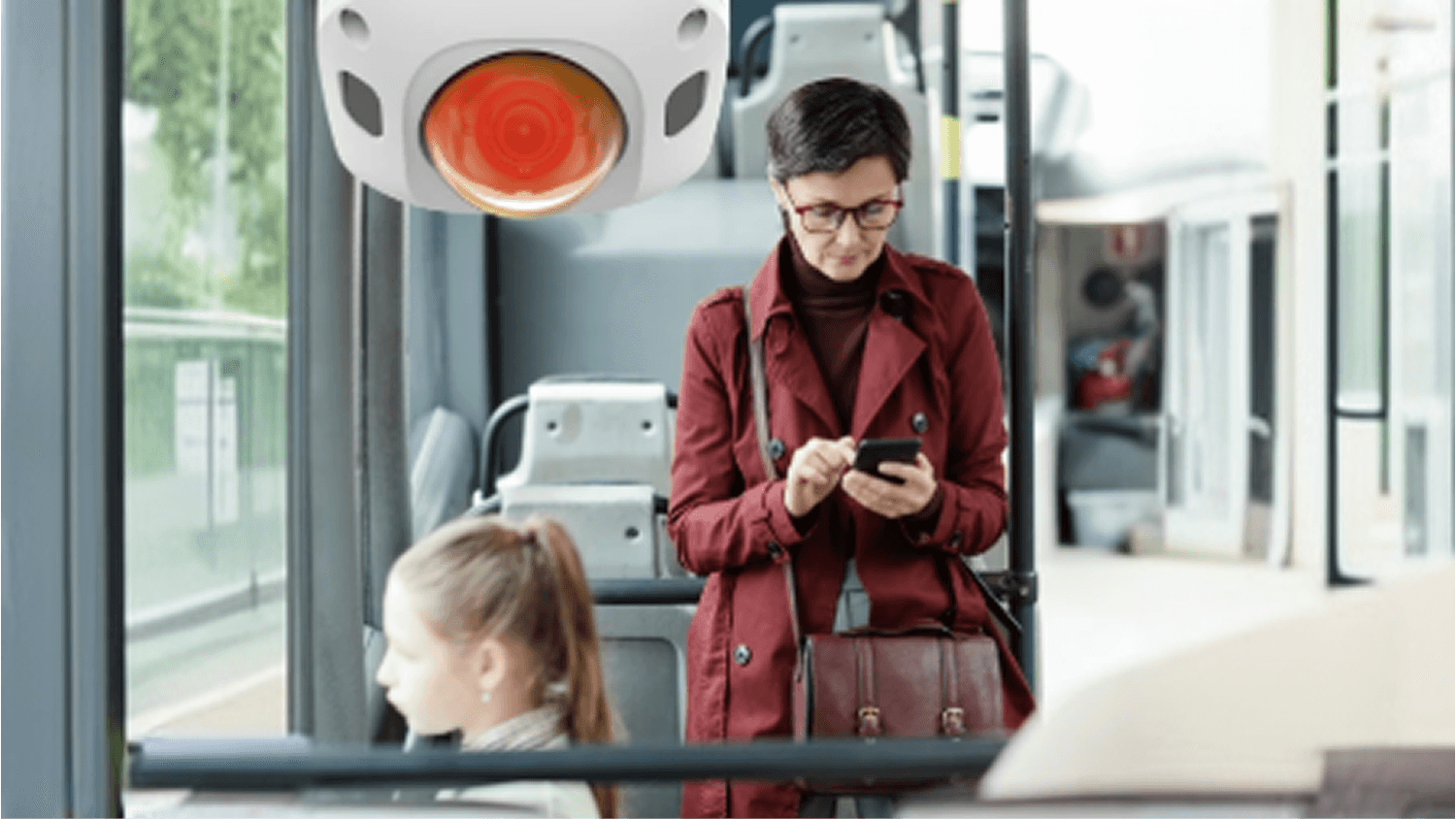

Optimized Sight for Low-light

The infrared sensor is positioned outside the camera dome to reduce glare and AI-enabled automatic exposure enables quick adjustments for consistently clear imagery.

Built Tough for On-the-Go Applications

Image and shock detection

Built-in gyro sensors stabilize the image, while shock detection alerts authorities if tampering occurs.

Adaptable defogging

Manually adjust settings in foggy conditions to enhance visibility.

Built-in heater

The built-in heater quickly clears fog inside the dome caused by sudden temperature changes in moving vehicles.

Expandable AI for Analytics and Business Intelligence



Object Classification & Analytics

Offers diverse attributes (color, bag, face mask) and advanced analytics (object counter, slip/fall, crowd detection)

Specialized AI features

Camera’s AI capabilities to meet requirements in various environments. Refer to each product page for supported AI functions.

Dynamic Privacy Masking

This feature allows for the monitoring of numerous objects in urban areas while simultaneously protecting privacy.

Similarity Search on VMS

It enables quick and easy retrieval of identical or similar objects across environments with multiple cameras.

Built-In Cybersecurity and Data Protection

Security is built into every layer, protecting data and meeting the exceptional FIPS 140-3 Level 3 standard.

Video

Imaging Device	Size	1/2.8"
	Type	CMOS
Resolution		2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate	H.265/H.264	30fps/25fps(60Hz/50Hz)
	MJPEG	30fps(@5MP Max. 5fps)
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.03
	BW(1/30sec, 30IRE)	0.003
Video Out		USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Focal Length (mm)		6.0
Max Aperture Ratio (F number)	Wide	1.65
Angular Field of View	Horizontal	50°
	Vertical	37°
	Diagonal	64°
Min. Object Distance		2.0m(6.56ft)
Focus Control		Fixed
Lens Type		Fixed iris
Mount Type		M12

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range	Pan	±5°
	Tilt	0°~67°
	Rotate	±90°

Operational

Day & Night		Auto(ICR)
Backlight Compensation		BLC, WDR, SSDR, ClearHDR
Wide Dynamic Range (dB)		120
Digital Noise Reduction		WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection	Quantity	8ea
	Shape	8point Polygonal zones
Privacy Masking	Quantity	32ea
	Shape	4point Quadrangle zones
	Color / Option	Gray, Green, Red, Blue, Black, White
Gain Control		Low, Middle, High
White Balance		ATW, AWC, Manual, Indoor, Outdoor
LDC		Support
Electronic Shutter	Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
	Speed Range	1/5~1/25,000sec
Video Rotation		Flip, Mirror, Hallway view(90°/270°)
Alarm Triggers		Analytics, Network disconnect, MQTT subscription
Alarm Events When Alarm Trigger Occurred		File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In		Selectable(mic in/line in), Built-in mic
Audio Out		Line out
Light Type		IR LED
Light Viewable Length	IR	30m(98.42ft)
IR Wavelength		850nm

Analytics

Classified Object Type		Person, Vehicle
Attributes	Person	Upper/Lower clothes color
	Vehicle	Type(car, bus, truck, motorcycle, bicycle), Color
Thumbnail		BestShot
Analytics Events	Based on AI Engine	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
	Normal	Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)
Business Intelligence	Based on AI Engine	People counting, Queue management, Heatmap, Vehicle counting

Network

Ethernet		M12
Video Compression		H.265/H.264: Main/High, MJPEG
Audio Compression		G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec		Manual, WiseStreamⅢ
Bitrate Control		H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast	Up to 20 users
	Multicast	Support
	Multiple Streaming	Up to 5 profiles
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface	ONVIF	S, G, T, M
	Others	SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection		Support

Security

OS / Firmware Protect		Encrypted firmware, Secure boot, Signed firmware
User authentication		Digest authentication, Prevent brute-force attack
Network authentication		IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication		HTTPS, WSS(WebSocket Secure)
Access Control		IP-based access control
Data Protect		Encryption credentials, Encrypt compress for live recording file export
Audit		Access / System / Event Log management
Device ID		Device certificate(Hanwha Vision Root CA)
Secure Storage		SDcard partition encrypt(AES-256)

General

Memory	RAM	2GB
	Flash	1GB
Edge Storage	Micro SD/SDHC/SDXC	Max. 256GB x 1slot

Environmental & Electrical

Operating Condition	Temperature	-40°C~+55°C(-40°F~+131°F)
	Humidity	0~100% RH(condensing)
	Others	Start up should be done at above -30°C, Humidity control with AIR vent
Storage Condition	Temperature	-40°C~+55°C(-40°F~+131°F)
	Humidity	0~95% RH(non-condensing)
Input Voltage		PoE(IEEE802.3af, Class3)
Power Consumption	PoE	Max. 7.2W, typical 4.2W

Mechanical

Color		White
Material		Aluminum, Hard-coated dome
RAL Code		RAL9003
Product Dimensions		106x105x55mm(4.17x.4.13x2.17")
Product Weight		466g(1.03 Ib)

Certifications & Standards

EMC		EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, EN 50121-3-2
Safety		UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment		IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, EN 50155, IEC 62236-4, EN 50121-4, JIS E 4031, EN 50498, IEC/EN 61373, EN 45545, JIS E 5006, IEC 62236-3-2

DORI (EN62676-4 standard)

Detect (25PPM/ 8PPF)	Wide	111.2m(364.74ft)
Observe (63PPM/ 19PPF)	Wide	44.5m(145.89ft)
Recognize (125PPM/ 38PPF)	Wide	22.2m(72.95ft)
Identify (250PPM/ 76PPF)	Wide	11.1m(36.47ft)





 T Series, Mobile IR vandal dome camera, 5MP, (2592x1944) 30fps, triple codec H.265/H.264/MJPEG with WiseStream technology, Fixed focal Lens 6mm (H:50°/V: 37°), Built in Mic, 120dB WDR, built-in IR range of 30m(98.43ft), Motion detection based on AI engine, Video Analytics based on AI[Object detection and Classification (Person(top/bottom clothing color),Vehicle(Type, color); BestShot, Virtual line, Virtual area], defocus detection, shock detection, hallway View, Heater, DIS with built-in Gyro sensor, Dynamic privacy masking, built-in SD card slot (1x256GB), IP66, IK10, Operating temperature: -40°C~+55°C(-40°F~+131°F), M12 Network connector (M12 connector to RJ-45 adaptor is not included)T Series, Mobile IR vandal dome camera, 5MP, (2592x1944) 30fps, triple codec H.265/H.264/MJPEG with WiseStream technology, Fixed focal Lens 6mm (H:50°/V: 37°), Built in Mic, 120dB WDR, built-in IR range of 30m(98.43ft), Motion detection based on AI engine, Video Analytics based on AI[Object detection and Classification (Person(top/bottom clothing color),Vehicle(Type, color); BestShot, Virtual line, Virtual area], defocus detection, shock detection, hallway View, Heater, DIS with built-in Gyro sensor, Dynamic privacy masking, built-in SD card slot (1x256GB), IP66, IK10, Operating temperature: -40°C~+55°C(-40°F~+131°F), M12 Network connector (M12 connector to RJ-45 adaptor is not included)
